As a manufacturer located in China, we understand the importance of providing reliable and high-quality products to our clients. Our mission is to provide comprehensive solutions to our clients in the pet bottle manufacturing industry. We are proud to offer our state-of-the-art pet bottle manufacturing machine to help our clients create high-quality PET bottles with ease.
Our pet bottle manufacturing machine is a complete solution for manufacturing high-quality PET bottles. Our machine offers a fully-automated production line that ensures consistent quality and ease of use. Our machine is designed to offer reliable and continuous production at high speeds, making it the ideal choice for manufacturers looking for a high-throughput machine.
Our pet bottle manufacturing machine is designed to provide clients with superior performance and efficiency. It uses advanced technology to minimize energy use and reduce production costs. Our machine also features an intuitive control interface, making it easy and convenient for operators to manage the production process.
One of the standout features of our machine is its versatility. It can produce a wide range of PET bottles with various shapes and sizes, making it a great investment for businesses in the beverage, pharmaceutical, and other industries. Regardless of the size and shape of the bottles needed, our machine can handle it.
Our pet bottle manufacturing machine is also designed for maximum safety. We have implemented safety protocols that ensure the safety of our operators and guarantee the safety of the products produced. This is an essential factor for manufacturers to consider, and we take it very seriously.
Another key aspect of our machine is its durability. It is built with high-quality materials that can withstand the wear and tear of continuous use. Our machine is designed to be reliable, efficient, and long-lasting.
We understand that our clients' needs may be unique, and that is why we offer customization services to fit specific requirements. Our team of highly skilled engineers will work closely with you to create a personalized solution that fits your specific production requirements.
Our machine is backed up by our customer service support. We take pride in providing exceptional customer service and technical support to assist our clients in resolving any issues they may have. We offer training services to ensure our clients are comfortable with operating our machine, and we are always available to assist with any questions or concerns.
In conclusion, our pet bottle manufacturing machine is an excellent investment for businesses looking to improve their production processes. We offer a reliable, efficient, and highly customizable solution that will meet your specific needs. Our machine is designed with the latest technology to ensure consistent quality and maximum efficiency, while maintaining exceptional safety standards. Our commitment to providing exceptional customer service and support makes us a reliable partner in helping our clients achieve their goals.
1.Stable performance with Advanced PLC
2.Conveying performs automatically with conveyor.

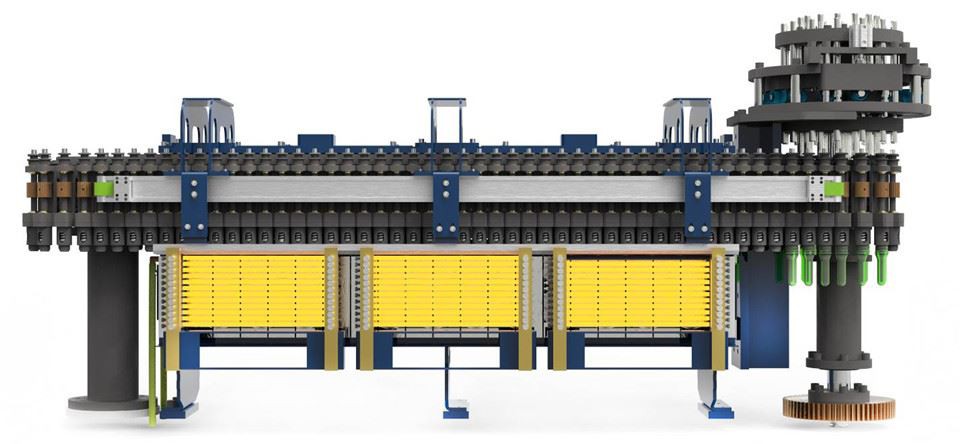

3.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
4.High adjustability to enable the preheater to preheat performs in shapes by adjusting the light tube and the length of the reflecting board in the preheating area,and eternal temperature in the preheater with an automatic thermostatic apparatus.
5.Optimization of the oven,suction and convulsion devices,cool the preform surface.Waterway,air duct directly through the device,double protect the screw neck
6.Each mechanical action has safety self-locking device,whe a process fails, the program will automatically switch to the security status.
7.Servo device for the material transfer and bottle perform distribution, fast,reliable,and high stability.
8.Using high pressure and hyperbolic arm connecting rod clamping,strong clamping force,speed and distance of clamp open are adjustable.
9.Safe,reliable,and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
10.Along with remotemaintenance systems,remote inspection maintenance,solve the troubles for you.
11.Low rejection rete: less than 0.2 percent.
|
Model |
Unit |
TEC BLOW II 5L-4CAV |
|
| Clamping System |
(Number of cavity) |
cavities |
4 |
|
(mold stroke) |
mm |
0-200 |
|
|
(stretch stroke) |
mm |
360 |
|
|
(Bottom stroke) |
mm |
50 |
|
|
(Cavity pitch) |
mm |
203.2 |
|
|
(heating pitch) |
mm |
76.2 |
|
|
(Number of holder) |
PCS |
96 |
|
| Container |
(Max.container volume) |
ltr |
5.0 |
|
(Max. neck diameter) |
mm |
48 |
|
|
(Max.prefrom height) |
mm |
160 |
|
|
(Max.container diameter) |
mm |
180 |
|
|
(Max.container height) |
mm |
360 |
|
|
(theoretical output) |
B.P.H |
3500-4000 |
|
| Electrical System |
(heating oven) |
UNITS |
6 |
|
(box*channel) |
Floor |
12 |
|
|
(Number of lamp) |
pcs |
96 |
|
|
(heating power) |
KW |
86 |
|
|
AVERAGE POWER |
KW |
56 |
|
|
(installed power) |
KW |
92 |
|
|
(voltage) |
Voltage |
220v/380V/50/60hz/3 phase |
|
| Air System |
(operating pressure) |
kg/cm2 |
7 |
|
(blowing pressure) |
mpa |
3.0-3.8 |
|
|
(high pressure air consuming) |
M3/min |
12 |
|
| Chiller System |
(temperature) |
°C |
10-15 |
|
(pressure) |
Mpa |
0.4 |
|
|
(flow rate) |
L/min |
100 |
|
|
(heating power) |
HP |
10 |
|
| Machine |
(L×W×H) (machine dimension) |
M |
1.0*3.5*2.5(Heating) |
| 2.5*2.0*2.5(Host) | |||
|
(machine weight) |
KG |
8000 |
|
