Specifications and function
Container range
Usage: Drugs, cosmetics, health products, alcohol, food, cosmetics, oils, soy sauce, mineral water, carbonated beverages, pesticides, and industrial products, etc.
Material: PET , PETG , PP , HDPE , PC , PES , COP , PPSU , Tritan etc.
Shape: Circular, non circular, fan-shaped, wide mouthed, thick walled, ultra light, bottle with handle, etc.
Rapid cooling technology - is a molding technology for PET containers, especially for thick bottomed bottles, which have a more significant effect
The cooling time at the injection molding station is set to zero, and the cooling work is set to 2 station , which greatly shortens the molding cycle
It is also possible to design better stretching ratios, and this rapid cooling molding process has improved the quality of bottles, with the following improvements.
*Tensile strength * stiffness * gas barrier
*Impact resistance * Creepage resistance * Thick wall distribution control and stability

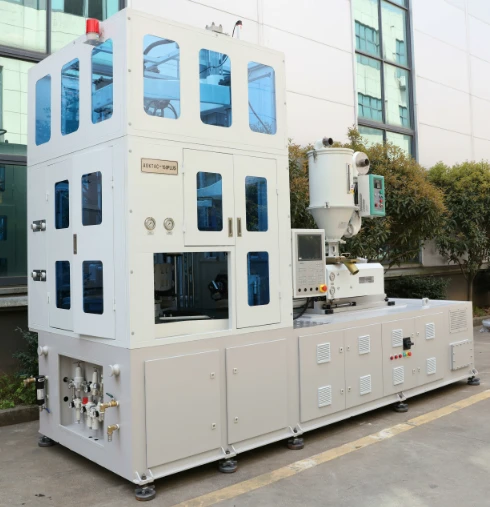

A small 1 step blow molding machine that combines all the advantages of energy conservation, versatility, and low noise.
A new standard for small 1 step blow molding machines.
设备配置
MACHINE COMPONENT LIST
|
序号No |
名称Name |
品牌Brand |
备注Re |
|
1 |
伺服电机 Servo motor |
汇川 Inovance |
中国China |
|
2 |
驱动器 drive |
汇川 Inovance |
中国China |
|
3 |
伺服泵 Servo pump |
注友 SUMITOMO |
日本Japan |
|
4 |
转盘伺服电机 Servo motor for rotary plate |
汇川Inovance |
中国China |
|
5 |
减速器 Speed reducer |
利茗LIMING |
台湾 Taiwan |
|
6 |
操作面板+电脑 Panel+Computer |
汇川 Inovance |
中国China |
|
8 |
电子尺 Displacement sensor |
OPKON |
土耳其Turkey |
|
9 |
液压电磁阀 Hydraulic solenoid valve |
东京美 KEIKI |
日本Japan |
|
10 |
低压动作阀 Low pressure valve |
SMC |
日本Japan |
|
11 |
高压吹气阀 High pressure valve |
诺冠 NORGEN |
英国 Britain |
|
11 |
动作气缸 Cylinder |
SMC |
日本Japan |
|
12 |
不锈钢/双合金螺杆Stainless/Metallic Screw |
华博 |
中国China |
|
13 |
交流接触器 contactor |
施耐德 Schneider |
法国 France |
|
14 |
断路器 Breaker |
施耐德 Schneider |
法国 France |
|
15 |
接近开关 Proximate sensor |
奥托尼克斯 Autonics |
韩国 South Korea |
|
16 |
磁性开关 Magnetic sensor |
SMC |
日本Japan |
设备型号参数
MACHINE MOLD SPECIFICATIONS
(三工位)
 |
设备技术参数
MACHINE SPECIFICATIONS
|
名称 |
型号Model |
单位Unit |
Name |
|
|
注塑装置 Injection unit |
||||
|
型号规格 |
AOK-150 PLUS |
Model |
||
|
螺杆直径 |
Φ30 |
mm |
Screw diameter |
|
|
注塑体积 |
393 |
cm3 |
Shot Volume |
|
|
注射压力 |
190 |
MPa |
Injection pressure |
|
|
注射行程 |
200 |
mm |
Injection Stroke |
|
|
螺杆转速 |
180 |
r/min |
Screw speed |
|
|
注塑模具工位 Injection mold clamp station |
||||
|
芯模合模力 |
300 |
KN |
Clamping force inj.core |
|
|
唇模合模力 |
300 |
KN |
Clamping force lip mold |
|
|
芯模合模行程 |
480 |
mm |
Clamping stroke inj.core |
|
|
唇模合模行程 |
600 |
mm |
Clamping stroke lip mold |
|
|
拉伸吹塑模具工位 Stretch blow mold clamp station |
||||
|
拉伸力 |
2.50 |
KN |
Stretch force |
|
|
拉伸行程 |
150 |
mm |
stretch stroke |
|
|
吹塑模具合模力 |
140 |
KN |
Blow mold clamping force |
|
|
吹塑模具最小模厚 |
160 |
mm |
Blow mold min. thickness |
|
|
吹塑最大开模行程 |
180 |
mm |
Blow mold max. Open stroke |
|
|
吹塑模具板尺寸 |
330x280+ |
mm |
Blow mold platen size |
|
|
瓶子顶出工位 Bottle eject station |
||||
|
顶出行程 |
150 |
mm |
Ejector Number |
|
|
顶出力 |
2.50 |
KN |
Ejector Force |
|
|
液压系统Hydraulic system |
||||
|
系统压力 |
17,5 |
MPa |
system pressure |
|
|
油箱容量 |
400 |
L |
Oil Tank Capacity |
|
|
泵1排量 |
126 |
L/min |
Pump 1 flow |
|
|
泵2排量 |
126 |
L/min |
Pump 2 flow |
|
|
泵3排量 |
126 |
L/min |
Pump 3 flow |
|
|
气动系统Pneumatic system |
||||
|
吹气压力 |
3.0 |
MPa |
Blowing air pressure |
|
|
机器操作用气压力 |
0,80 |
MPa |
Machine operating air pressure |
|
|
吹气管路容量 |
2,7 |
*2*4 |
L/shot |
Blowing air piping volume |
|
机器操作用气容量 |
10,0 |
*3 |
L/shot |
Machine operating air volume |
|
电气系统Electric system |
||||
|
油泵1伺服电机 |
22 |
Kw |
Servo motor-pump1 |
|
|
油泵2伺服电机 |
22 |
Kw |
Servo motor-pump2 |
|
|
油泵3伺服电机 |
22 |
Kw |
Servo motor-pump3 |
|
|
旋转台伺服电机 |
3 |
Kw |
Servo motor-filter unit |
|
|
炮筒发热容量 |
9 |
Kw |
Heating capacity-barrel |
|
|
模具发热容量 |
4.0 |
Kw |
Heating capacity-mold |
|
|
控制电路负载 |
0.75 |
Kw |
Control circuit load |
|
|
控制电路电压 |
24 |
VDC |
Control circuit voltage |
|
|
总功率 |
82 |
Kw |
Total power |
|
|
实际运行功率 |
15 |
Kw |
||
|
冷却水系统Water system |
||||
|
冷却塔水量 |
55 |
L/min |
Cooling tower water |
|
|
冷却塔水压力 |
0.3-0.6 |
MPa |
Cooling tower water pressure |
|
|
冰水水量 |
60 |
L/min |
Chiller water |
|
|
稳定性的水温 |
±1(以内) |
℃ |
Consistency of water temperature |
|
|
冰水水压 |
0.3-0.6 |
MPa |
Chiller water pressure |
|
|
机器尺寸,重量 Machine size,mass |
||||
|
机器尺寸 |
4500x1600x3100 |
mm |
Machine size |
|
|
机床面积 |
4500x1400 |
mm |
Floor space |
|
|
机身重量 |
10000 |
kg |
Machine Weight |
|
